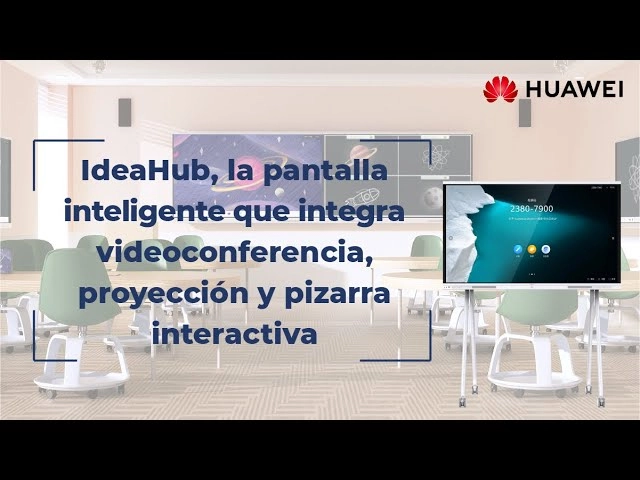

Pantalla interactiva de colaboracion inteligente huawei ideahub board 2 de 65 pulgadas, ihb2-65su

ITEM SPECIFICATIONS
SYSTEM
CPU 2 X A73 + 2 X A53
GPU MALI-G51 MP4
RAM 4 GB
FLASH 32 GB
OPERATING SYSTEM ANDROID 9.0 IS SUPPORTED. THE OPTIONAL OPS SUPPORTS WINDOWS 10.
SCREEN DISPLAY
ASPECT RATIO 16:09
DISPLAY RESOLUTION 3840 X 2160
REFRESH RATE 60 HZ
VIEWING ANGLE AND #8805; 178°
RESPONSE TIME (TYPICAL VALUE) 8 MS
DISPLAY AREA 65-INCH MODEL: 1428.48 MM X 803.52 MM
75-INCH MODEL: 1649.66 MM X 927.94 MM
86-INCH MODEL: 1895.04 MM X 1065.96 MM
PIXEL DISTANCE 65-INCH MODEL: 372.0 AND #956;M X 372.0 AND #956;M
75-INCH MODEL: 429.6 AND #956;M X 429.6 AND #956;M
86-INCH MODEL: 493.5 AND #956;M X 493.5 AND #956;M
COLOR DEPTH 10 BIT (8 BIT + FRC)
HARDWARE-BASED ANTI-BLUE LIGHT SUPPORTED
SURFACE TREATMENT OF GLASS ANTI-GLARE
CONTRAST (TYPICAL VALUE) 1200:01:00
BRIGHTNESS (TYPICAL VALUE/MAXIMUM VALUE) 350 NITS/400 NITS
MEAN TIME TO FAILURE (MTTF) 30000 HOURS
SCREEN BRIGHTNESS UNIFORMITY AND #8805; 70%
BACKLIGHT TYPE D-LED
SCREEN TYPE INFRARED SCREEN
PANEL TECHNOLOGY IPS
GLASS THICKNESS AND #8805; 3.2 MM
SCREEN TOUCH CONTROL
MAXIMUM NUMBER OF TOUCH POINTS 20
MAXIMUM IDENTIFIABLE OBJECTS 2 POINTS, 3 MM
TOUCH PRECISION ±1 MM
MAXIMUM SCREEN SENSING RANGE AND #8804; 1.5 MM
TOUCHSCREEN RESOLUTION 32767 (W) X 32767 (D)
BUILT-IN SPEAKER
QUANTITY 2 X (TWEETER + FULL-FREQUENCY UNIT)
TOTAL POWER OF SPEAKER 2 X 15 W
SOUND OUTPUT MODE FRONT TWEETERS AND BOTTOM FULL-FREQUENCY SPEAKERS
FREQUENCY RESPONSE RANGE 100 HZ TO 20 KHZ
STEREO SUPPORTED
MAXIMUM SOUND LEVEL 95 DB SPL@1 M
ELECTRICITY SUPPLY REQUIREMENTS
RATED OPERATING VOLTAGE 100–240 V AC, 50/60 HZ
MAXIMUM POWER CONSUMPTION 65-INCH MODEL: 350 W
75-INCH MODEL: 420 W
86-INCH MODEL: 450 W
STANDBY POWER 0.5 W
ENVIRONMENTAL REQUIREMENTS (IN USE)
AMBIENT TEMPERATURE 0 AND #8451; TO 40 AND #8451;
RELATIVE HUMIDITY 10%–95%
EMC LEVEL CLASS A
OPERATING ALTITUDE 5000 M
OPERATING (HOUR/DAY) 16-JUL
ENVIRONMENTAL REQUIREMENTS (IDLE)
AMBIENT TEMPERATURE –20°C TO +60°C
RELATIVE HUMIDITY (NON-CONDENSING) 5% TO 95%
PHYSICAL PARAMETERS OF THE ENTIRE SYSTEM
PRODUCT DIMENSIONS 65-INCH MODEL: 892.5 MM X 1484.5 MM X 91.6 MM
75-INCH MODEL: 1016.9 MM X 1705.7 MM X 91.8 MM
86-INCH MODEL: 1157.0 MM X 1953.0 MM X 91.8 MM
PACKAGE DIMENSIONS 65-INCH MODEL: 1050 MM X 1650 MM X 220 MM
75-INCH MODEL: 1170 MM X 1900 MM X 220 MM
86-INCH MODEL: 1300 MM X 2090 MM X 250 MM
NET WEIGHT 65-INCH MODEL: 35.2 KG
75-INCH MODEL: 46.7 KG
86-INCH MODEL: 61.6 KG
GROSS WEIGHT (INCLUDING THE PACKAGE) 65-INCH MODEL: 42.7 KG
75-INCH MODEL: 56.7 KG
86-INCH MODEL: 73.1 KG
(OPTIONAL) FLOOR STAND
PRODUCT DIMENSIONS 1525.0 MM X 1302.0 MM X 764.0 MM
PACKAGE DIMENSIONS 180 MM X 1390 MM X 845 MM
NET WEIGHT 19.5 KG
GROSS WEIGHT (INCLUDING THE PACKAGE) 24.8 KG
(OPTIONAL) WALL-MOUNTED BRACKET
PRODUCT DIMENSIONS 30 MM X 1170 MM X 210 MM
PACKAGE DIMENSIONS 86 MM X 1270 MM X 300 MM
NET WEIGHT 3.6 KG
GROSS WEIGHT (INCLUDING THE PACKAGE) 5.5 KG
STYLUS PEN
QUANTITY 2
WI-FI
WI-FI PROTOCOL 802.11 A/B/G/N/AC
SUPPORTED FREQUENCY BAND 2.4G TO 2.4835G
5G TO 5.85G
MAXIMUM TRANSMIT POWER 2.4G: 20 DBM
5G: 23 DBM
INSTALLATION
INSTALLATION MODES WALL-MOUNTED AND FLOOR STAND
