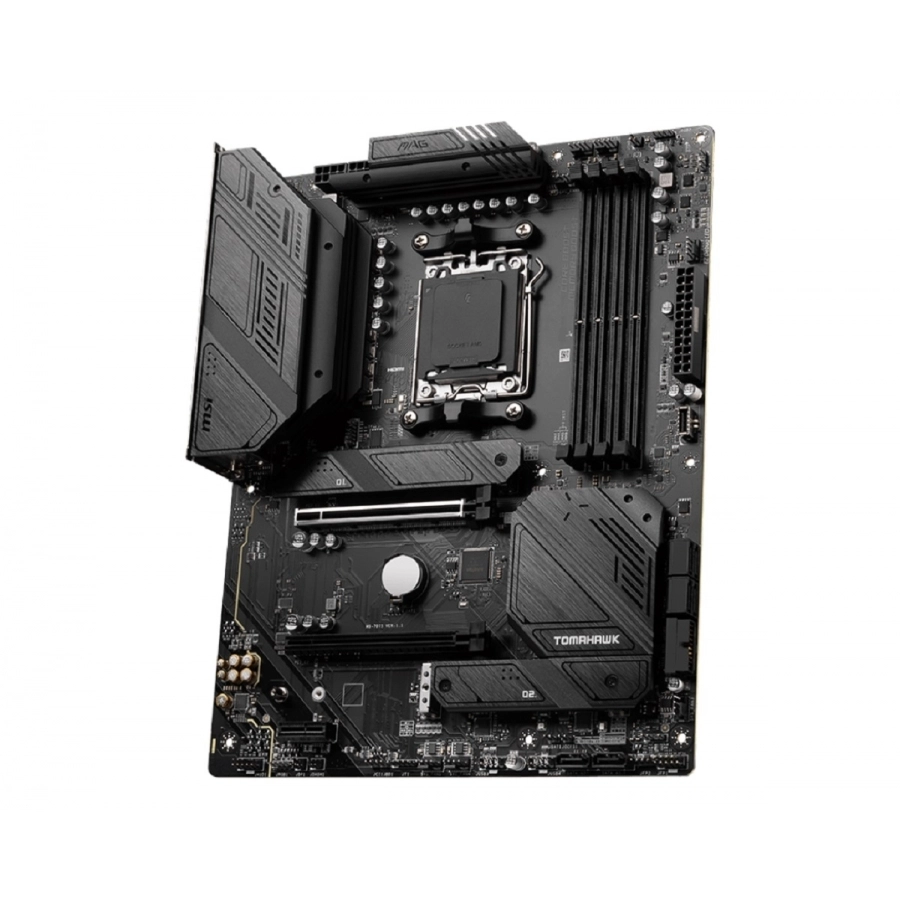

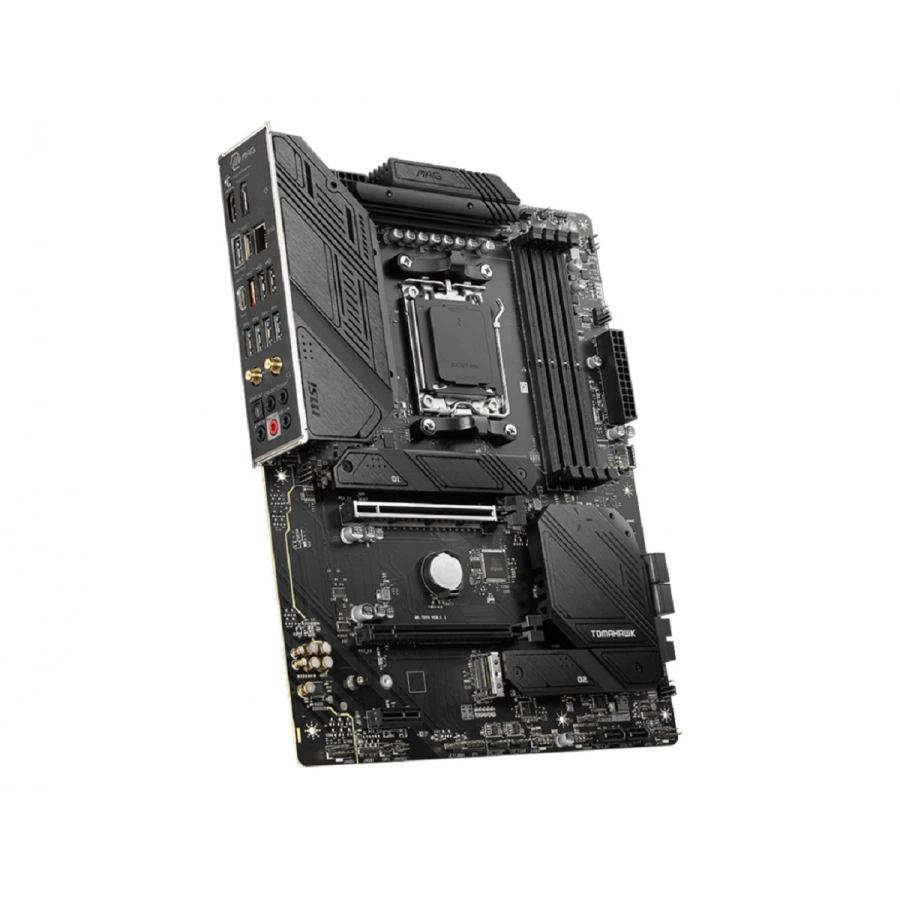

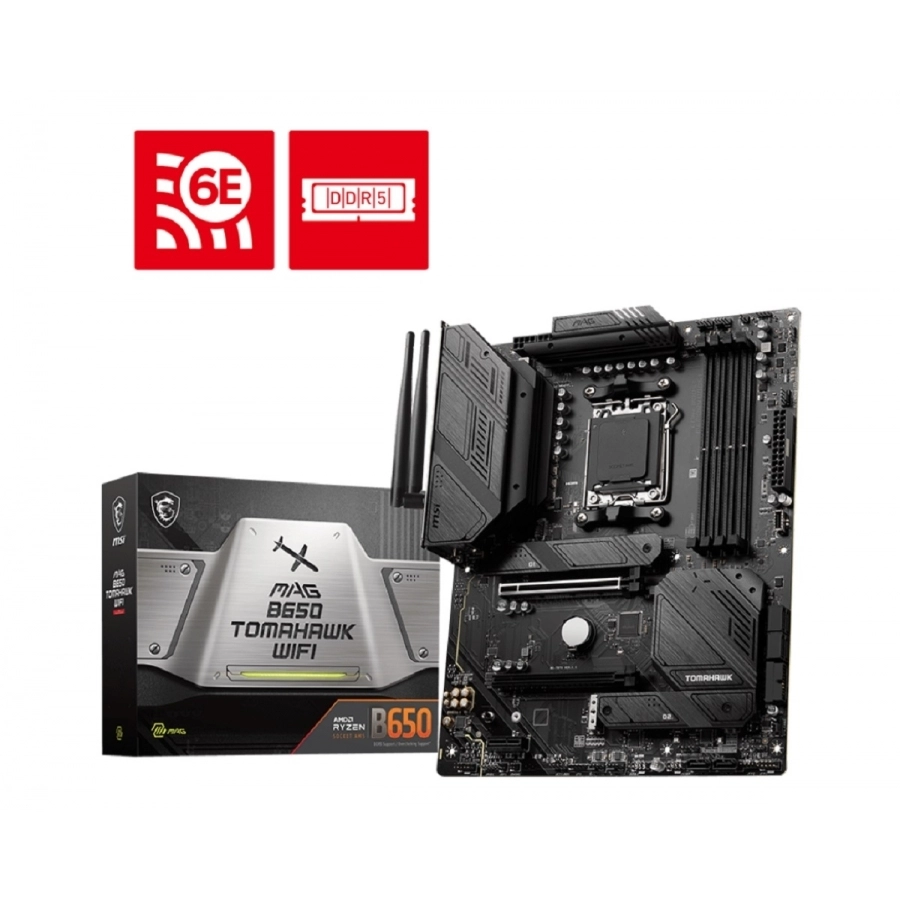

Mb msi b650 amd s-am5 s.7000 ddr5 7600 pcie 4.0/hdmi/4xusb 2.0/m.2/wifi/bluetooth 5.3 /atx/rgb/gama alta

CHIPSET:AMD B650
CPU SUPPORT SUPPORTS AMD RYZEN™ 7000 SERIES DESKTOP PROCESSORS
SOCKET AM5
MEMORY 4X DDR5, MAXIMUM MEMORY CAPACITY 192GB
MEMORY SUPPORT DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHZ
MAX. OVERCLOCKING FREQUENCY:
1DPC 1R MAX SPEED UP TO 7600+ MHZ
1DPC 2R MAX SPEED UP TO 6400+ MHZ
2DPC 1R MAX SPEED UP TO 6400+ MHZ
2DPC 2R MAX SPEED UP TO 5400+ MHZ
ONBOARD GRAPHICS 1X HDMI™
SUPPORT HDMITM 2.1 WITH HDR, MAXIMUM RESOLUTION OF 4K 60HZ*
1X DISPLAYPORT
SUPPORT DP 1.4, MAXIMUM RESOLUTION OF 8K 60HZ*
AVAILABLE ONLY ON PROCESSORS FEATURING INTEGRATED GRAPHICS. GRAPHICS SPECIFICATIONS MAY VARY DEPENDING ON THE CPU INSTALLED.
EXPANSION SLOT 2X PCI-E X16 SLOT (QTY)
SUPPORT X16/ X4
1X PCI-E X1 SLOT (QTY)
PCI_E1 GEN PCIE 4.0 SUPPORTS UP TO X16 (FROM CPU)
PCI_E2 GEN PCIE 4.0 SUPPORTS UP TO X2 (FROM CHIPSET)
PCI_E3 GEN PCIE 3.0 SUPPORTS UP TO X1 (FROM CHIPSET)
STORAGE 3X M.2 (QTY)
M.2_1 SOURCE (FROM CPU) SUPPORTS UP TO PCIE 4.0 X4 , SUPPORTS 2280/2260 DEVICES
M.2_2 SOURCE (FROM CPU) SUPPORTS UP TO PCIE 4.0 X4 , SUPPORTS 2280/2260 DEVICES
M.2_3 SOURCE (FROM CHIPSET) SUPPORTS UP TO PCIE 4.0 X4 , SUPPORTS 2280/2260 DEVICES
6X SATA 6G (QTY)
RAID SUPPORTS RAID 0, RAID 1, AND RAID 10 FOR SATA STORAGE DEVICES*
SUPPORTS RAID 0 AND RAID 1 FOR M.2 NVME STORAGE DEVICES
SATA_A1_A2 DO NOT SUPPORT RAID FUNCTION.
USB 2X USB 2.0 (REAR)
4X USB 2.0 (FRONT)
4X USB 3.2 GEN1 TYPE A (REAR)
2X USB 3.2 GEN1 TYPE A (FRONT)
3X USB 3.2 GEN2 TYPE A (REAR)
1X USB 3.2 GEN2 TYPE C (FRONT)
1X USB 3.2 GEN2X2 TYPE C (REAR)
LAN REALTEK® RTL8125B 2.5GBPS LAN
WIRELESS / BLUETOOTH AMD WI-FI 6E
THE WIRELESS MODULE IS PRE-INSTALLED IN THE M.2 (KEY-E) SLOT
SUPPORTS MU-MIMO TX/RX
SUPPORTS 20MHZ, 40MHZ, 80MHZ,160MHZ BANDWIDTH IN 2.4GHZ/ 5GHZ OR 6GHZ* BANDS
SUPPORTS 802.11 A/ B/ G/ N/ AC/ AXSUPPORTS BLUETOOTH® 5.3
WI-FI 6E 6GHZ MAY DEPEND ON EVERY COUNTRY’S REGULATIONS AND WILL BE READY IN WINDOWS 11.
BLUETOOTH 5.3 WILL BE READY IN WINDOWS 10 BUILD 21H1 AND WINDOWS 11.
AUDIO REALTEK® ALC4080 CODEC
7.1-CHANNEL HIGH PERFORMANCE AUDIO
SUPPORTS S/PDIF OUTPUT
SUPPORTS UP TO 32-BIT/384 KHZ PLAYBACK ON FRONT PANEL
INTERNAL I/O 1X POWER CONNECTOR(ATX_PWR)
2X POWER CONNECTOR(CPU_PWR)
1X CPU FAN
1X PUMP FAN
6X SYSTEM FAN
2X FRONT PANEL (JFP)
1X CHASSIS INTRUSION (JCI)
1X FRONT AUDIO (JAUD)
1X TUNING CONTROLLER CONNECTOR(JDASH)
2X ADDRESSABLE V2 RGB LED CONNECTOR (JARGB_V2)
2X RGB LED CONNECTOR(JRGB)
1X TPM PIN HEADER(SUPPORT TPM 2.0)
4X USB 2.0 PORTS
2X USB 3.2 GEN1 TYPE A PORTS
1X USB 3.2 GEN2 TYPE C PORTS
LED FEATURE 4X EZ DEBUG LED

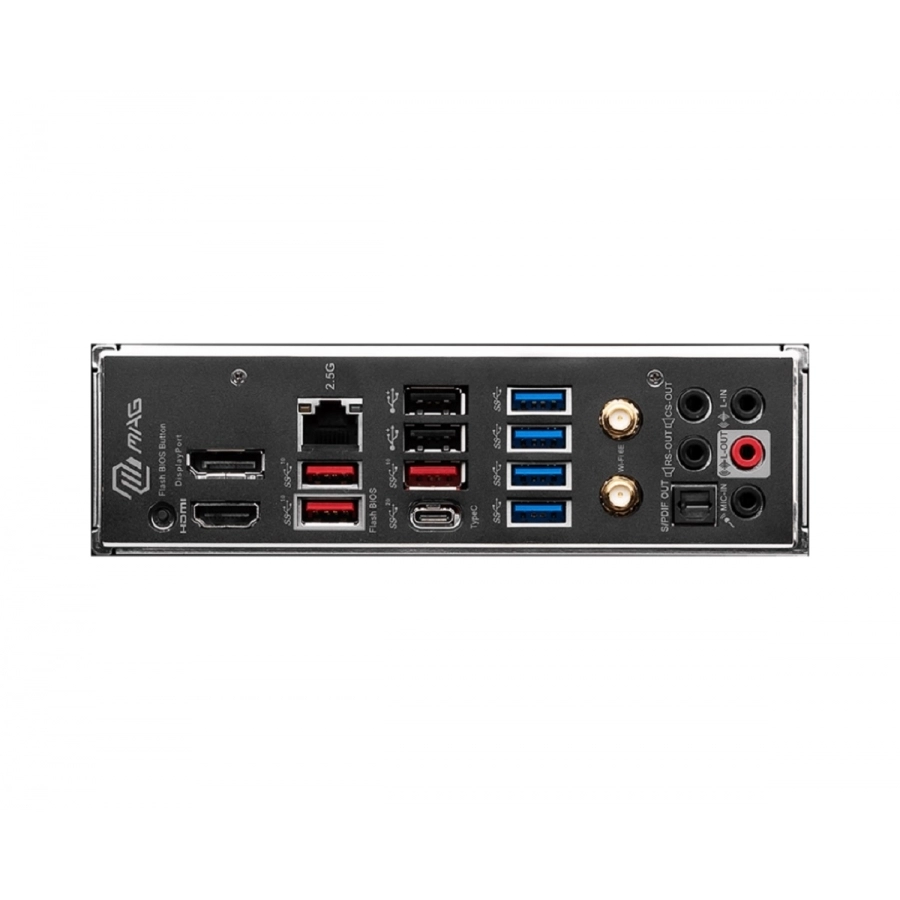

BACK PANEL PORTS
DISPLAYPORT 1.4
2.5G LAN PORT
USB 2.0 PORT
USB 3.2 GEN 1 5GBPS TYPE-A
WI-FI / BLUETOOTH ANTENNA
HD AUDIO CONNECTORS
FLASH BIOS BUTTON
HDMI™ 2.1 PORT
USB 3.2 GEN 2 10GBPS TYPE-A
USB 3.2 GEN 2X2 20GBPS TYPE-C
OPTICAL S/PDIF OUT
OPERATING SYSTEM SUPPORT FOR WINDOWS® 11 64-BIT, WINDOWS® 10 64-BIT
PCB DIMENSION (W × L): ATX
243.84MMX304.8MM
