Mb asus b850 amd s-am5 9a gen /4x ddr5 7600 /hdmi /2x dp /2x usb 3.2 /micro atx /gama media

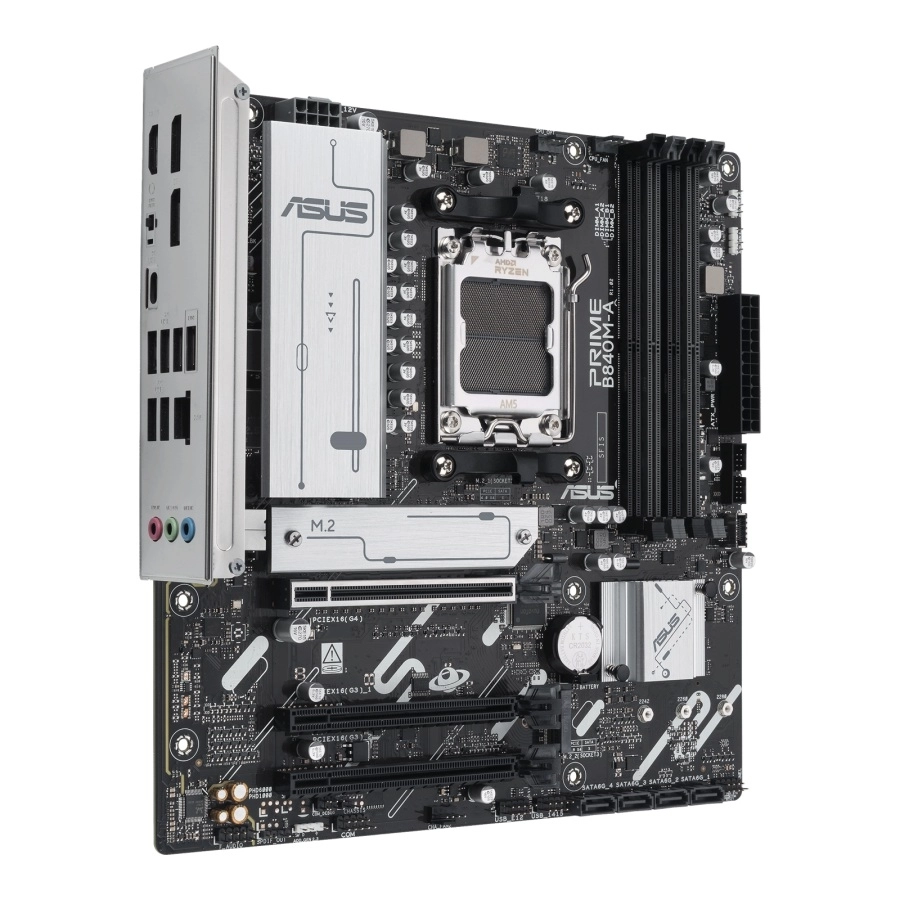

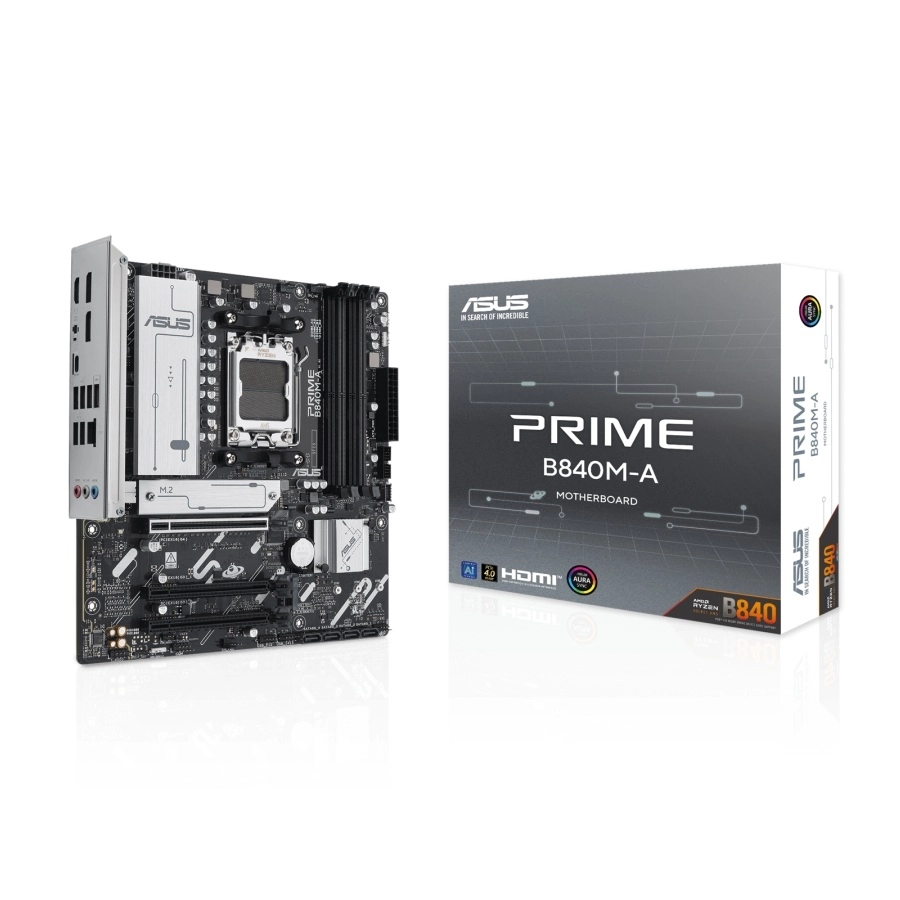

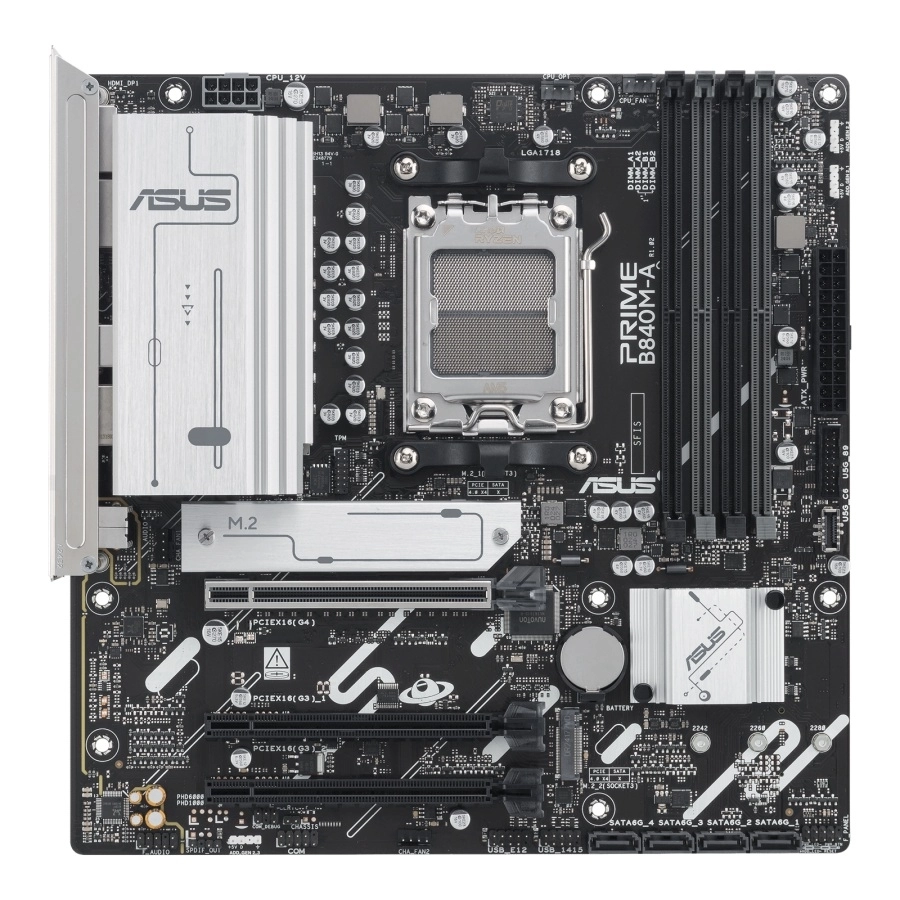

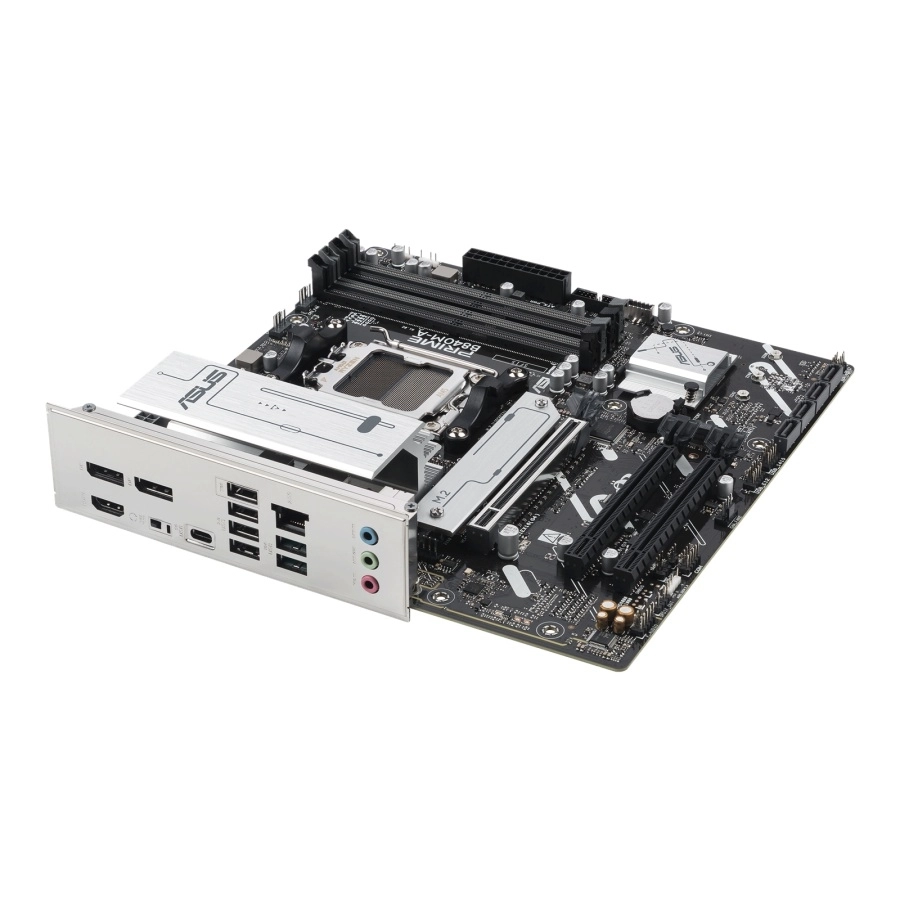

PRIME B840M-A
CPU AMD SOCKET AM5 FOR AMD RYZEN™ 9000 AND 8000 AND 7000 SERIES DESKTOP PROCESSORS
CHIPSET AMD B840 CHIPSET
MEMORY 4 X DIMM SLOTS, MAX. 256GB, DDR5 - SUPPORTS UP TO 7600+MT/S (OC) WITH RYZEN™ 9000 AND 8000 AND 7000 GRAPHICS 2 X DISPLAYPORT; 1 X HDMI™ PORT
EXPANSION SLOTS:
AMD RYZEN™ 9000 AND 7000 SERIES DESKTOP PROCESSORS*
1 X PCIE 4.0 X16 SLOT (SUPPORTS X16 MODE)
AMD RYZEN™ 8000 SERIES DESKTOP PROCESSORS
1 X PCIE 4.0 X16 SLOT (SUPPORTS X8/X4 MODE)**
AMD B840 CHIPSET
2 X PCIE 3.0 X16 SLOTS (SUPPORT X1 MODE)
STORAGE:
TOTAL SUPPORTS 3 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS
AMD RYZEN™ 9000 AND 7000 SERIES DESKTOP PROCESSORS
M.2_1 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 4.0 X4 MODE)
M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)
AMD RYZEN™ 8000 SERIES DESKTOP PROCESSORS
M.2_1 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 4.0 X4 MODE)
M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4/X2 MODE)*
AMD B840 CHIPSET
M.2_3 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 3.0 X4 MODE)
4 X SATA 6GB/S PORTS
* SPECIFICATIONS VARY BY CPU TYPES.
AMD RAIDXPERT2 TECHNOLOGY
RYZEN™ 9000 SERIES PROCESSORS: RAID 0/1/5/10
RYZEN™ 8000 SERIES PROCESSORS: RAID 0/1
RYZEN™ 7000 SERIES PROCESSORS: RAID 0/1/10
ETHERNET 1 X REALTEK 2.5GB ETHERNET; ASUS LANGUARD

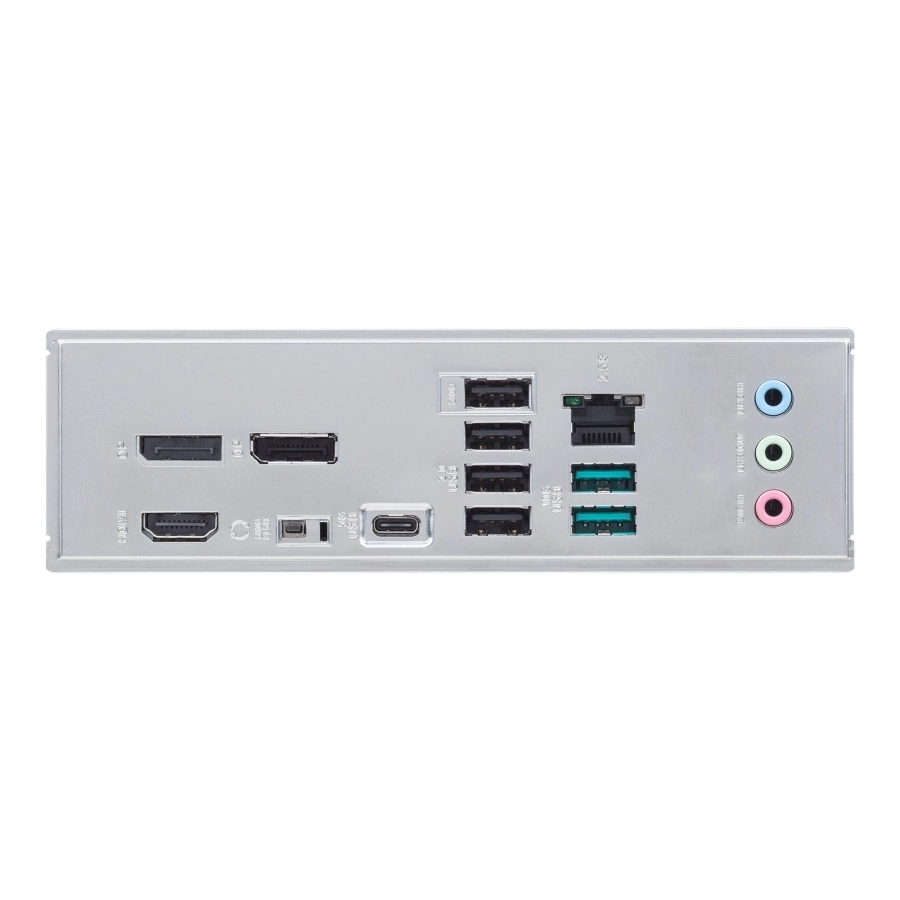

BACK PANEL I/O PORTS
2 X USB 10GBPS PORTS (2 X TYPE-A)
1 X USB 5GBPS PORT (1 X USB TYPE-C®)
4 X USB 2.0 PORTS (4 X TYPE-A)
2 X DISPLAYPORT
1 X HDMI™ PORT
1 X REALTEK 2.5GB ETHERNET PORT
3 X AUDIO JACKS
1 X BIOS FLASHBACK™ BUTTON
BIOS 256 MB FLASH ROM, UEFI AMI BIOS
MANAGEABILITY WOL BY PME, PXE
OPERATING SYSTEM WINDOWS 11, WINDOWS 10 64-BIT
FORM FACTOR MICRO-ATX FORM FACTOR 9.6 INCH X 9.6 INCH (24.4 CM X 24.4 CM)
