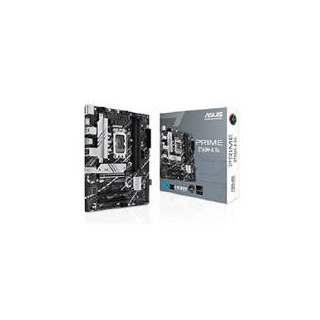

Mb asus b760 intel s-1700 13a gen/2x ddr4 2666/hdmi/vga/m.2/4x usb 3.2/micro atx/gama media

MODEL
PRIME B760M-K D4

CPU
INTEL SOCKET LGA1700 FOR 13TH GEN INTEL CORE PROCESSORS 12TH GEN INTEL CORE, PENTIUM® GOLD AND CELERON PROCESSORS
SUPPORTS INTEL TURBO BOOST TECHNOLOGY 2.0 AND INTEL TURBO BOOST MAX TECHNOLOGY 3.0
REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST.
INTEL TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES.

CHIPSET
INTEL B760 CHIPSET

MEMORY
2 X DIMM, MAX. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 NON-ECC, UN-BUFFERED MEMORY*
DUAL CHANNEL MEMORY ARCHITECTURE
SUPPORTS INTEL EXTREME MEMORY PROFILE (XMP)
SUPPORTED MEMORY TYPES, DATA RATE (SPEED), AND NUMBER OF DRAM MODULES VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION PLEASE REFER TO CPU/MEMORY SUPPORT LIST UNDER THE SUPPORT TAB OF PRODUCT INFORMATION SITE OR VISIT

GRAPHICS
1 X VGA PORT
1 X HDMI PORT
GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES.
SUPPORTS 4K 60HZ AS SPECIFIED IN HDMI 2.1.

EXPANSION SLOTS
INTEL 13TH AND 12TH GEN PROCESSORS
1 X PCIE 4.0 X16 SLOT
INTEL B760 CHIPSET
2 X PCIE 4.0 X1 SLOTS
NOTE: TO ENSURE COMPATIBILITY OF THE DEVICE INSTALLED, PLEASE REFER TO HTTPS://WWW.ASUS.COM/SUPPORT/ FOR THE LIST OF SUPPORTED PERIPHERALS.

STORAGE
TOTAL SUPPORTS 2 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS
INTEL 13TH 12TH GEN PROCESSORS
M.2_1 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)
INTEL B760 CHIPSET
M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)
4 X SATA 6GB/S PORTS
INTEL RAPID STORAGE TECHNOLOGY SUPPORTS SATA RAID 0/1/5/10.

ETHERNET
1 X REALTEK 2.5GB ETHERNET

USB
REAR USB (TOTAL 6 PORTS)
4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A)
2 X USB 2.0 PORTS (2 X TYPE-A AND #65289;
FRONT USB (TOTAL 5 PORTS)
1 X USB 3.2 GEN 1 HEADER SUPPORTS 2 ADDITIONAL USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORT 3 ADDITIONAL USB 2.0 PORTS

AUDIO
REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC
- SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING
- SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK

AUDIO FEATURES
- AUDIO SHIELDING
- PREMIUM AUDIO CAPACITORS
- DEDICATED AUDIO PCB LAYERS
A CHASSIS WITH AN HD AUDIO MODULE IN THE FRONT PANEL IS REQUIRED TO SUPPORT 7.1 SURROUND SOUND AUDIO OUTPUT.

BACK PANEL I/O PORTS
4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A)
2 X USB 2.0 PORTS (2 X TYPE-A)
1 X VGA PORT
1 X HDMI PORT
1 X REALTEK 2.5GB ETHERNET PORT
3 X AUDIO JACKS
1 X PS/2 KEYBOARD/MOUSE COMBO PORT

INTERNAL I/O CONNECTORS
FAN AND COOLING RELATED
1 X 4-PIN CPU FAN HEADER
1 X 4-PIN CHASSIS FAN HEADER
POWER RELATED
1 X 24-PIN MAIN POWER CONNECTOR
1 X 8-PIN +12V POWER CONNECTOR
STORAGE RELATED
2 X M.2 SLOTS (KEY M)
4 X SATA 6GB/S PORTS
USB
1 X USB 3.2 GEN 1 HEADER SUPPORTS 2 ADDITIONAL USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORT 3 ADDITIONAL USB 2.0 PORTS
MISCELLANEOUS
2 X ADDRESSABLE GEN 2 HEADERS
1 X AURA RGB HEADER
1 X CLEAR CMOS HEADER
1 X COM PORT HEADER
1 X FRONT PANEL AUDIO HEADER (AAFP)
1 X S/PDIF OUT HEADER
1 X SPEAKER HEADER
1 X SPI TPM HEADER (14-1PIN)
1 X 10-1 PIN SYSTEM PANEL HEADER

SPECIAL FEATURES
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGUARD
- OVERVOLTAGE PROTECTION
- SAFESLOT CORE
- STAINLESS-STEEL BACK I/O
ASUS Q-DESIGN
- Q-DIMM
- Q-LED CORE
- Q-SLOT
ASUS EZ DIY
- PROCOOL
ASUS THERMAL SOLUTION
- VRM HEATSINK DESIGN
AURA SYNC
- AURA RGB HEADER
- ADDRESSABLE GEN 2 HEADERS

SOFTWARE FEATURES
ASUS EXCLUSIVE SOFTWARE
ARMOURY CRATE
- AURA SYNC
- FAN XPERT
- POWER SAVING
AI SUITE 3
- DIGI+ VRM
- PC CLEANER
ASUS CPU-Z
NORTON 360 DELUXE (60 DAYS FREE TRIAL)
WINRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CRASHFREE BIOS 3
- ASUS EZ FLASH 3
- ASUS UEFI BIOS EZ MODE

BIOS
128 MB FLASH ROM, UEFI AMI BIOS

MANAGEABILITY
WOL BY PME, PXE

ACCESSORIES
CABLES
2 X SATA 6GB/S CABLES
MISCELLANEOUS
1 X I/O SHIELD
2 X M.2 ANCHORS
DOCUMENTATION
1 X USER GUIDE

OPERATING SYSTEM
WINDOWS 11, WINDOWS 10 64-BIT

FORM FACTOR
MATX FORM FACTOR
9.6 INCH X 8.3 INCH (24.4CM X 21.1CM)
