Mb asus b450 amd s-am4 5a gen /4x ddr4 2666 /hdmi /dvi-d /d-sub /m.2 /6x usb 3.2 /micro atx /gama media

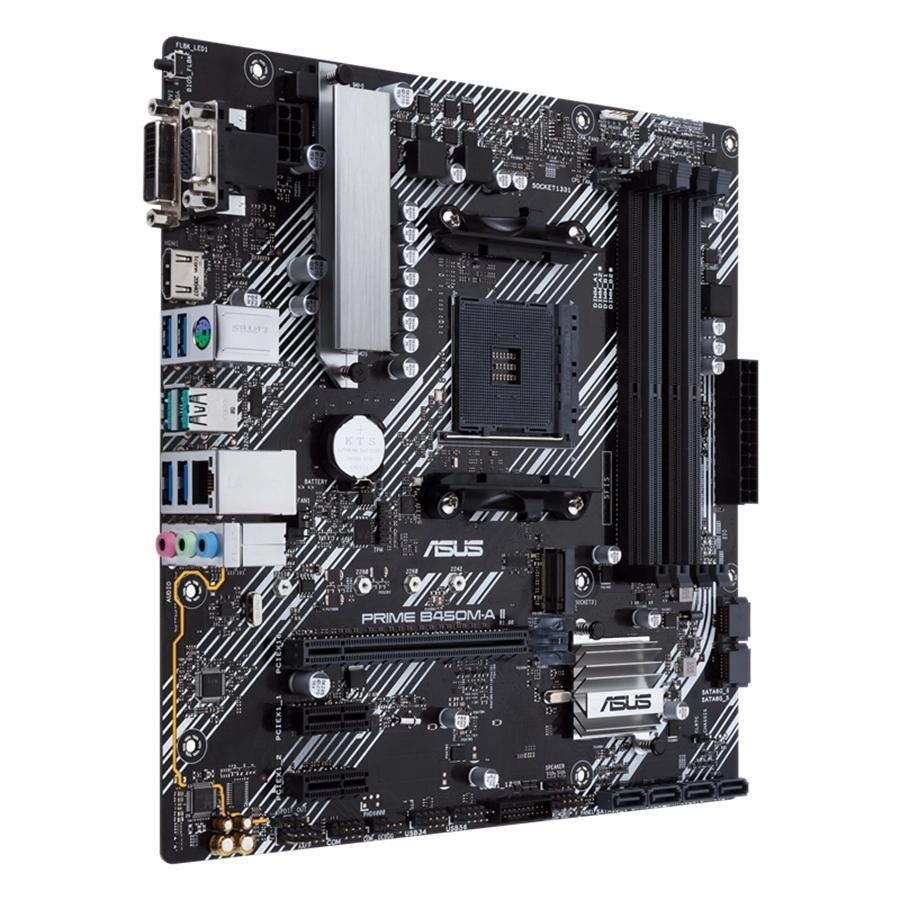

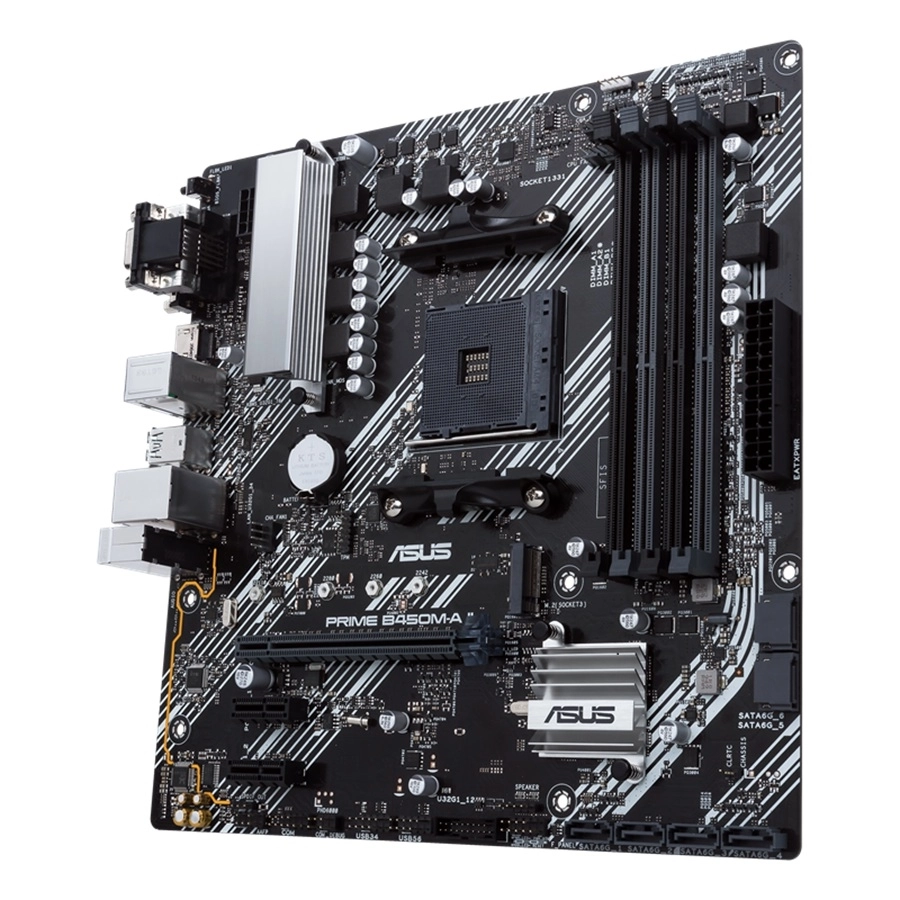

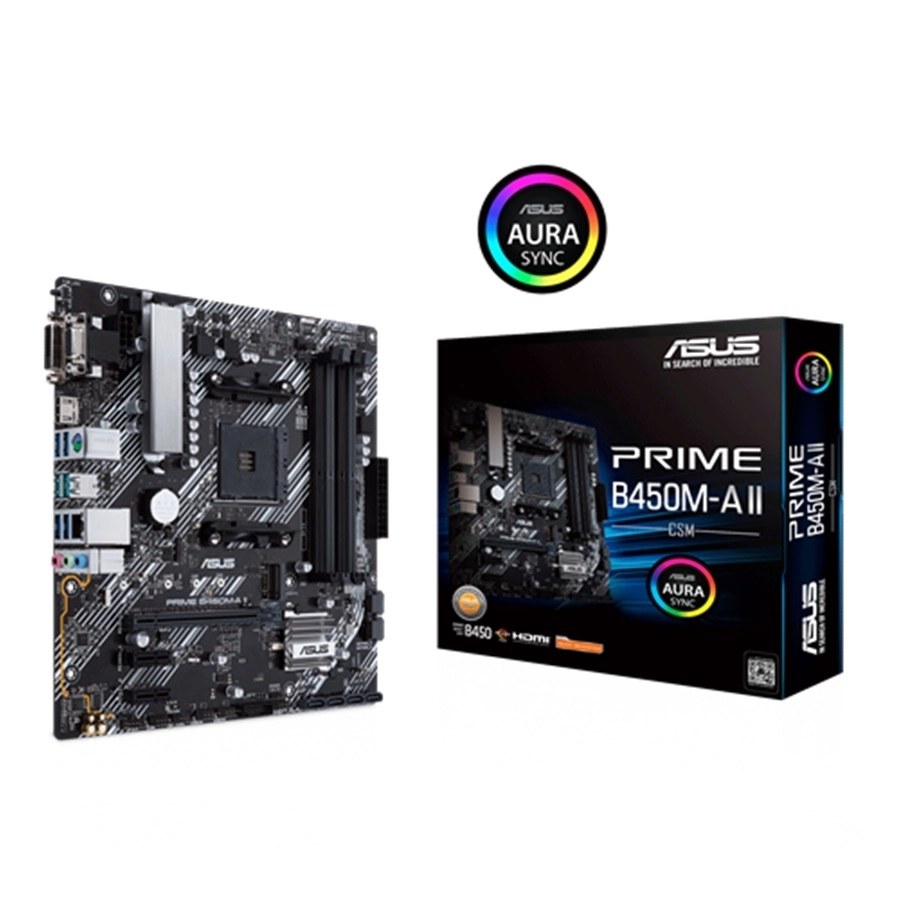

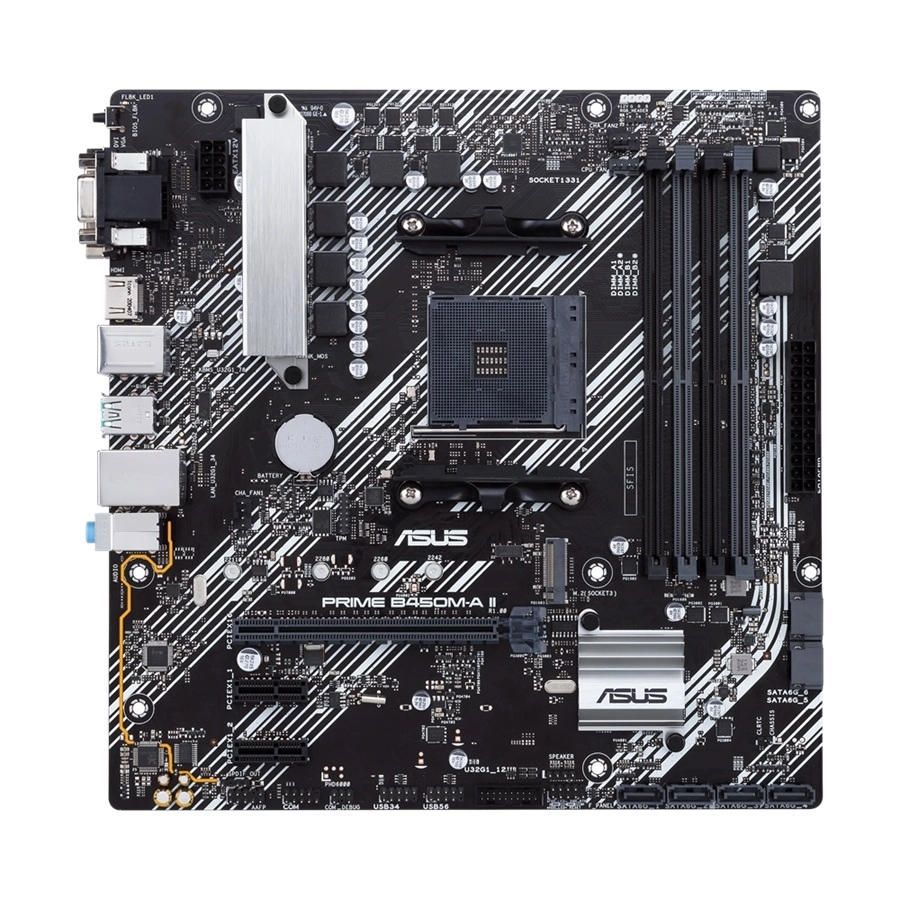

PRIME B450M-A II/CSM

CPU
AMD AM4 SOCKET FOR AMD RYZEN™ 5000 SERIES/ 5000 G-SERIES/ 4000 G-SERIES/ 3RD/2ND/1ST GEN AMD RYZEN™/ 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS/ ATHLON™ WITH RADEON™ VEGA GRAPHICS PROCESSORS , REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST

CHIPSET
AMD B450

MEMORIA
4 X DIMM, MAX. 128GB, DDR4 4400O.C/4000O.C./3866O.C./3733O.C./3600O.C./3466O.C./3400O.C./3300O.C./3200O.C./3000O.C./2800O.C./2666/2400/2133 MHZ UN-BUFFERED MEMORY ,3RD/2ND/1ST GEN AMD RYZEN™/ 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS/ ATHLON™ WITH RADEON™ VEGA GRAPHICS PROCESSORS, THE MAXIMUM MEMORY FREQUENCY SUPPORTED VARIES BY PROCESSOR.,DUAL CHANNEL MEMORY ARCHITECTURE,ECC MEMORY ECC MODE SUPPORT VARIES BY CPU., REFER TO WWW.ASUS.COM FOR THE MEMORY QVL QUALIFIED VENDORS LISTS.

GRFICOS
1 X HDMI™ PORT,INTEGRATED GRAPHICS IN THE 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS/ ATHLON™ WITH RADEON™ VEGA GRAPHICS PROCESSORS ,GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES.

SLOTS DE EXPANSIN
1 X PCIE 3.0 X16 X4 MODE,3RD/2ND/1ST GEN AMD RYZEN™ PROCESSORS,AMD ATHLON™ WITH RADEON™ VEGA GRAPHICS PROCESSORS,AMD B450 CHIPSET,2 X PCIE 2.0 X1,1 X PCIE 3.0 X16 X16 MODE,1 X PCIE 3.0 X16 X8 MODE

ALMACENAMIENTO
TOTAL SUPPORTS 1 X M.2 SLOTS AND 6 X SATA 6GB/S PORTS,3RD/2ND/1ST GEN AMD RYZEN™/ 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS : 1,ATHLON™ WITH RADEON™ VEGA GRAPHICS PROCESSORS : 1,3RD/2ND/1ST GEN AMD RYZEN™/ 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS/ ATHLON™ WITH RADEON™ VEGA GRAPHICS PROCESSORS : ,1 X M.2 SOCKET 3, WITH M KEY, TYPE 2242/2260/2280/22110 STORAGE DEVICES SUPPORT SATA MODE,2 X SATA 6GB/S PORTS,,AMD B450 CHIPSET : ,4 X SATA 6GB/S PORTS,,1 X M.2 SOCKET 3, WITH M KEY, TYPE 2242/2260/2280/22110 STORAGE DEVICES SUPPORT SATA AND PCIE 3.0 X 4 MODE,SUPPORT RAID 0, 1, 10

LAN
ASUS LANGUARD,REALTEK® RTL8111H

AUDIO
- PREMIUM AUDIO CAPACITORS,REALTEK ALC887/8977.1-CHANNEL HIGH DEFINITION AUDIO CODEC ,- SUPPORTS : JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING, UP TO 24-BIT/192KHZ PLAYBACK,- LED-ILLUMINATED DESIGN,- AUDIO SHIELDING,- DEDICATED AUDIO PCB LAYERS,AUDIO FEATURE :, CHOOSE THE CHASSIS WITH HD AUDIO MODULE IN FRONT PANEL TO SUPPORT 8-CHANNEL AUDIO OUTPUT.

PUERTOS USB
2 X USB 3.2 GEN 2 UP TO 10GBPS PORTS2 X TYPE-A,FRONT USB PORT TOTAL 6 ,REAR USB PORT TOTAL 6 ,4 X USB 3.2 GEN 1 PORTS4 X TYPE-A,2 X USB 3.2 GEN 1 PORTS,4 X USB 2.0 PORTS

PUERTOS I/O TRASEROS

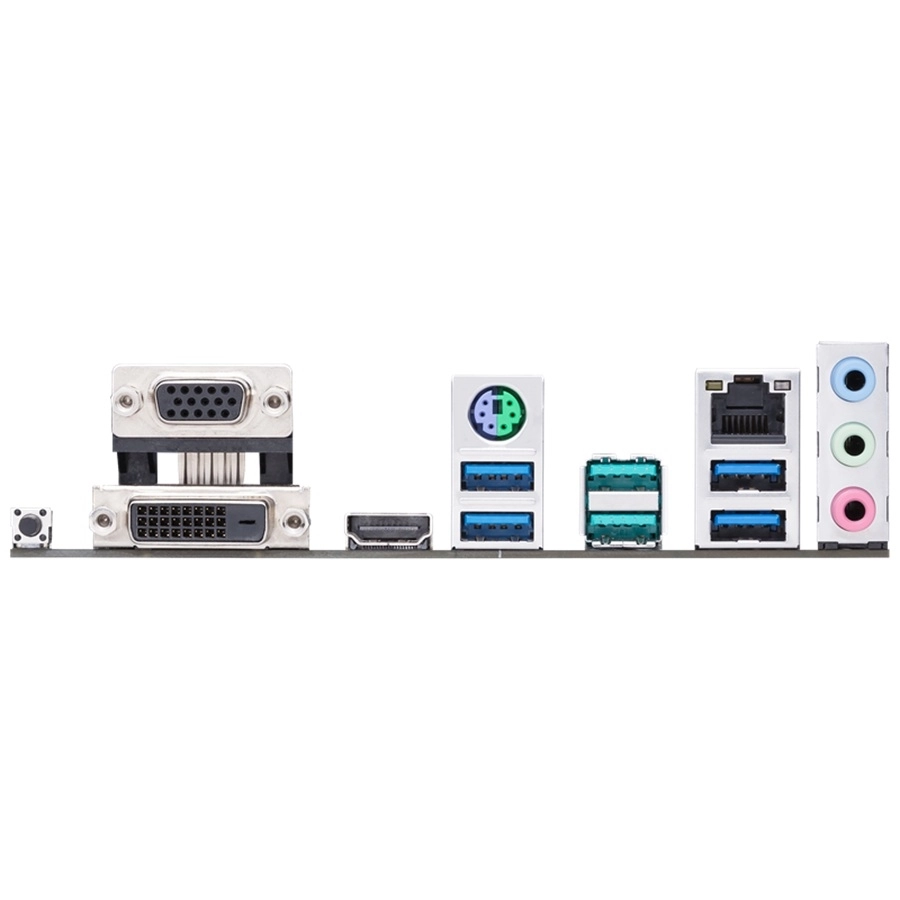

2 X USB 3.2 GEN 2 TEAL BLUE 2 X TYPE-A,1 X BIOS FLASHBACK™ BUTTONS,4 X USB 3.2 GEN 1 BLUE TYPE-A,1 X DVI-D,1 X D-SUB,3 X AUDIO JACKS,1 X PS/2 KEYBOARD/MOUSE COMBO PORTS,1 X HDMI,1 X LAN RJ45 PORTS

INTERNAL I/O
1 X USB 3.2 GEN 1UP TO 5GBPS CONNECTORS SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS 19-PIN,1 X RGB HEADER,2 X CHASSIS FAN CONNECTORS 2 X 4-PIN,1 X M.2 SOCKET 3 WITH M KEY, TYPE 2242/2260/2280/22110 STORAGE DEVICES SUPPORT SATA AND PCIE 3.0 X 4 MODE,6 X SATA 6GB/S CONNECTORS,1 X SPEAKER CONNECTOR,1 X CPU FAN CONNECTORS 1 X 4-PIN,2 X USB 2.0 CONNECTORS SUPPORTS ADDITIONAL 4 USB 2.0 PORTS,1 X SPI TPM HEADER,1 X COM PORTS CONNECTORS,1 X S/PDIF OUT HEADERS,1 X 24-PIN EATX POWER CONNECTORS,1 X 8-PIN ATX 12V POWER CONNECTORS,1 X FRONT PANEL AUDIO CONNECTORS AAFP,1 X SYSTEM PANELS,1 X CLEAR CMOS JUMPERS,1 X COM PORT HEADER

BIOS
256 MB FLASH ROM, UEFI AMI BIOS

SISTEMA OPERATIVO
WINDOWS® 7 64-BIT 2,WINDOWS® 10 64-BIT

FACTOR DE FORMA
9.6 INCH X 9.5 INCH 24.4 CM X 24 CM ,MATX FORM FACTOR
