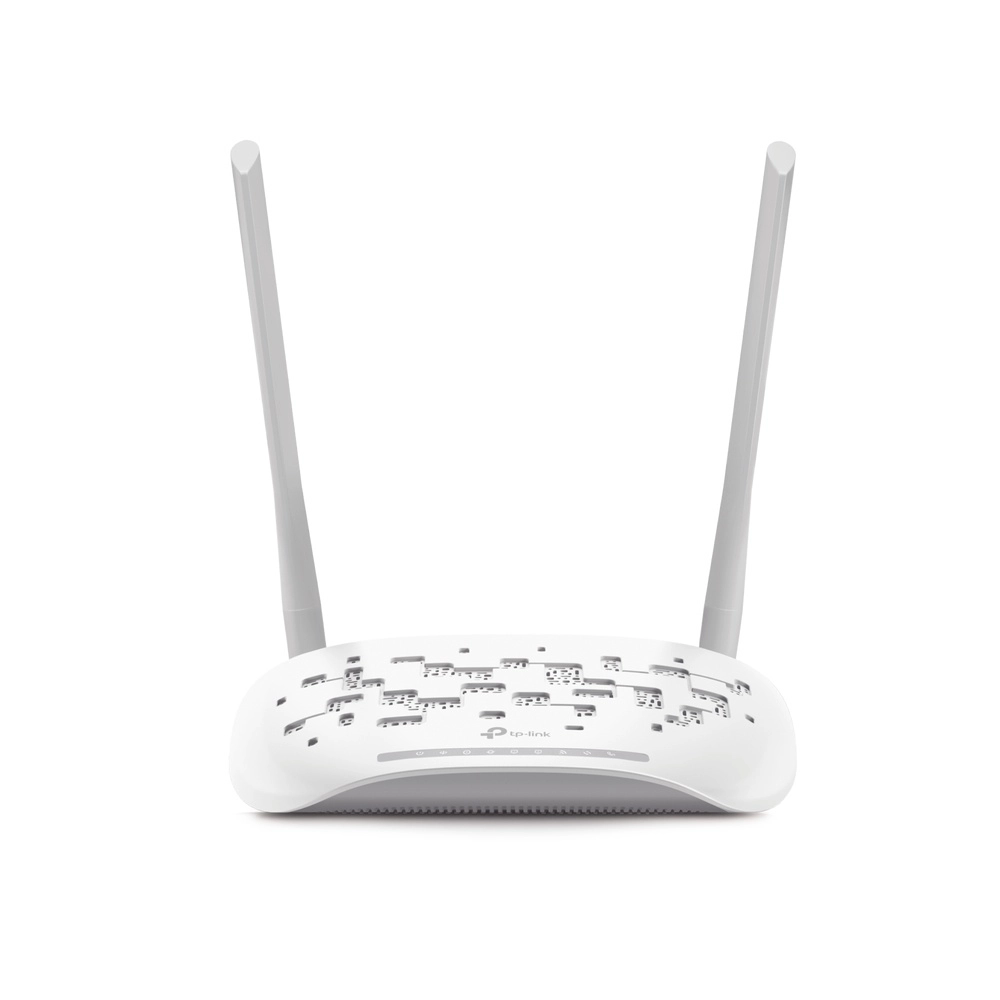

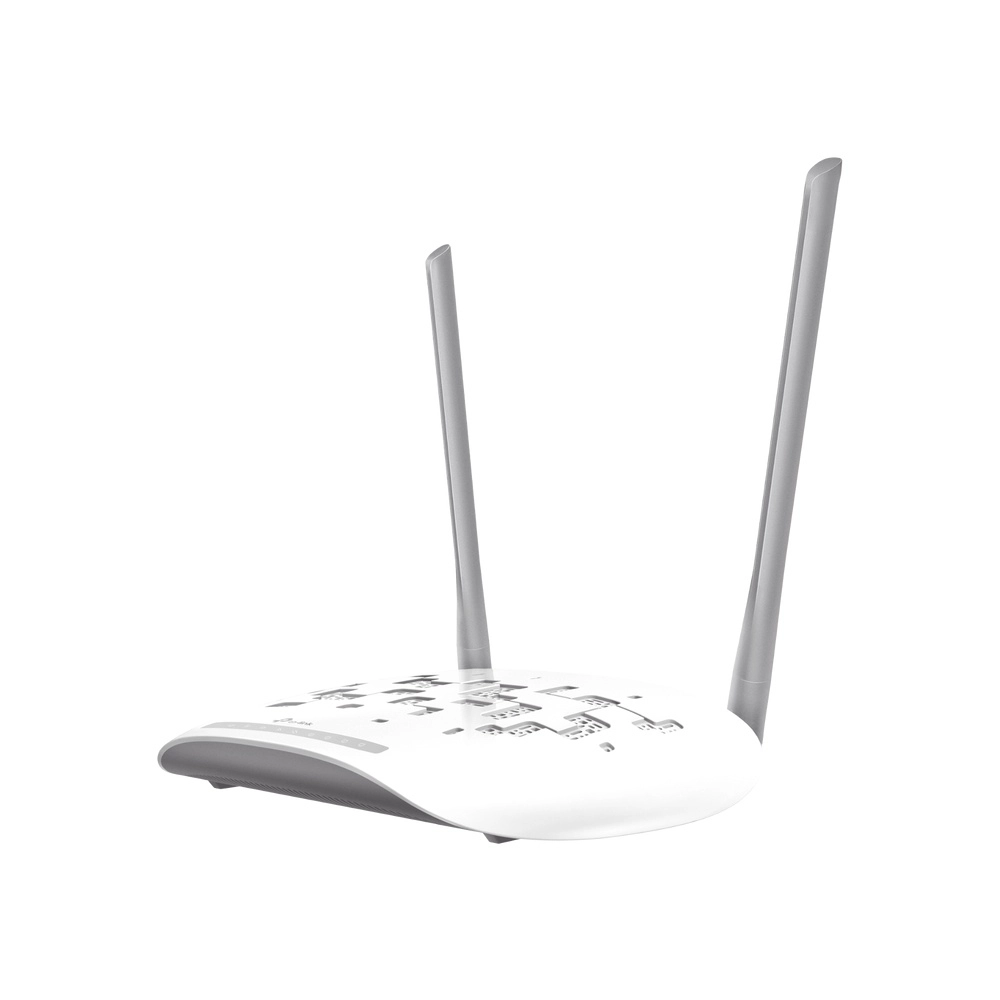

Gpon voip inalambrico tp-link xn020-g3v 300mbps 802.11n/g/b 1 puerto sc/apc pon 1 puerto 10/100/1000 mbps lan 1 puerto 10/100 mbps lan 1 puerto fxs y 2 antenas externas 5dbi router gpon

CARACTERÍSTICAS DE HARDWARE.

-DISTANCIA DE TRANSMISIÓN: 0 ~ 20KM MAX

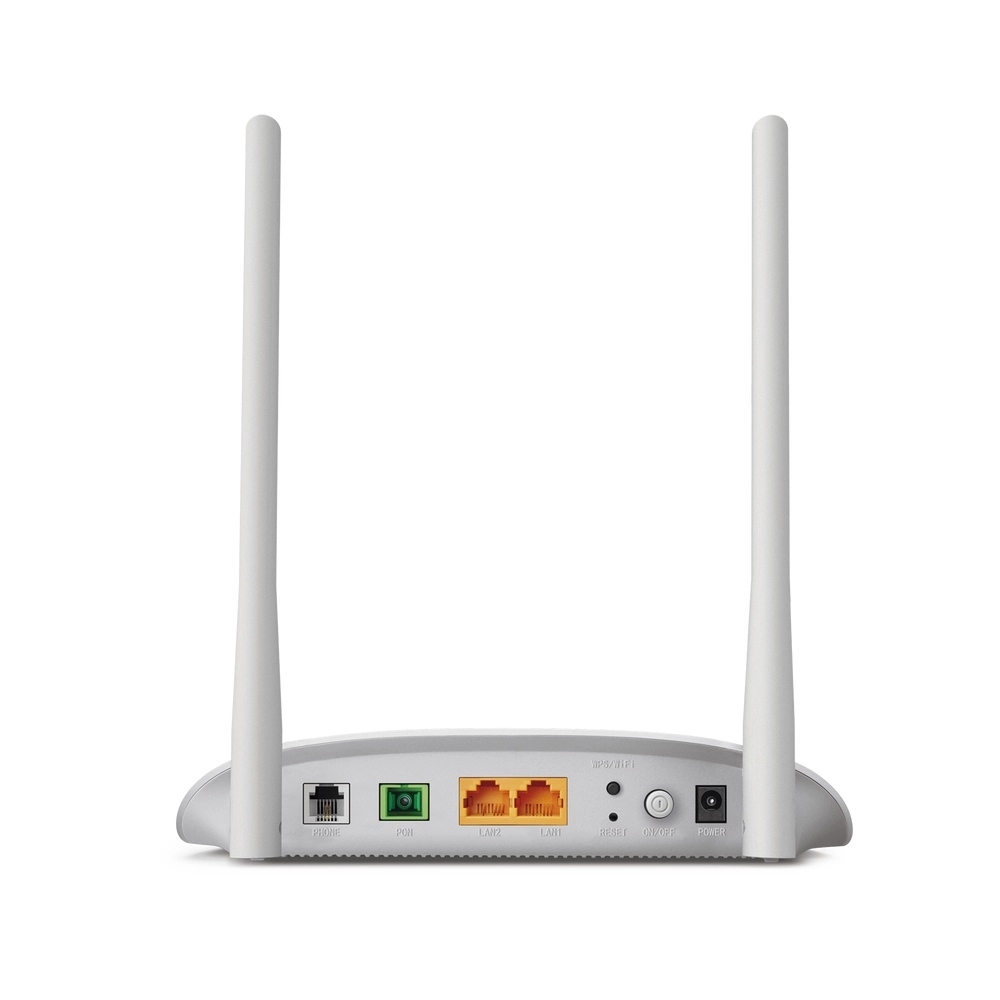

-INTERFACE:
1* SC/APC PORT
1* 10/100/1000MBPS LAN PORT
1* 10/100MBPS LAN PORT
1 FXS PORT
-BOTÓN: POWER ON/OFF BUTTON, RESET BUTTON, WPS/WI-FI BUTTION
-FUENTE DE ALIMENTACIÓN EXTERNA: 12V/0.6A
-ESTÁNDARES INALÁMBRICOS: IEEE 802.11G, 802.11B,802.11N
-ESTÁNDARES IEEE: IEEE 802.3, IEEE 802.3U, 802.3AB
-DIMENSIONES (W X D X H): 7.1 ×4.9× 1.4 IN. (181.5 ×125.7 ×36.2MM)
-GANANCIA DE ANTENA: 2X2 AND #65292;2.4G 5DBI
-ESTÁNDARES GPON:
ITU G.984.1
ITU G.984.2
ITU G.984.3
ITU G.984.4
-MÓDULO ÓPTICO: CLASS C+
-LONGITUD DE ONDA ÓPTICA: TRANSMIT AT 1310NM RECEIVE AT 1490NM

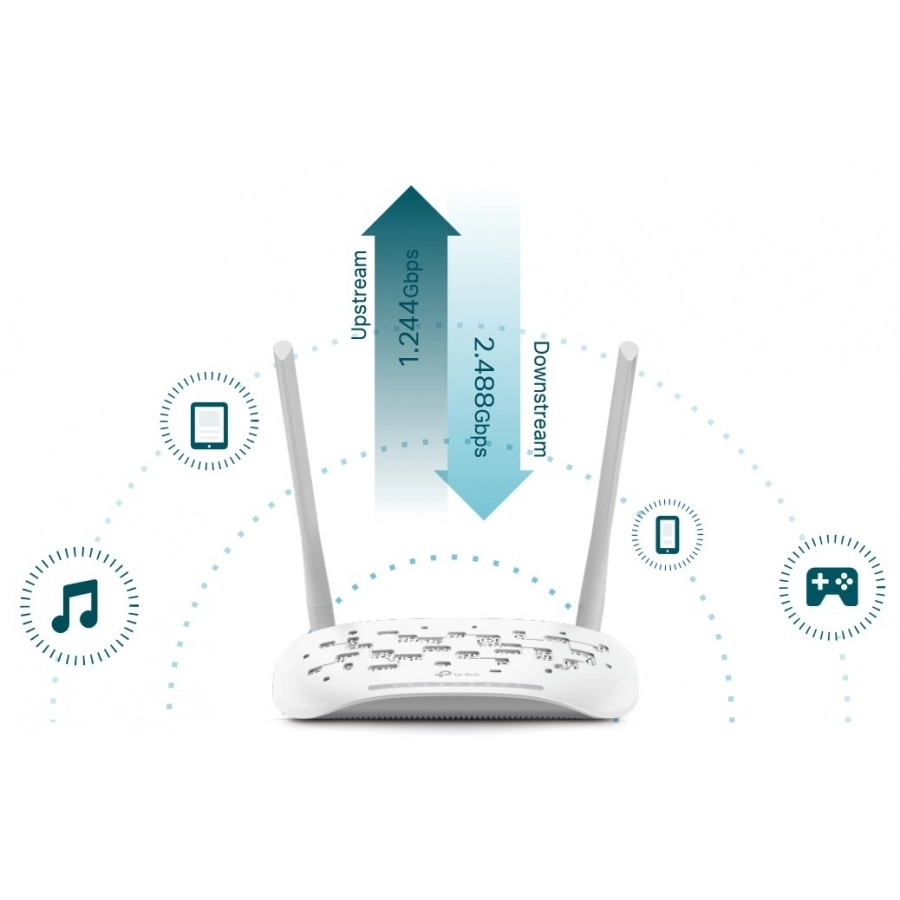

-ANCHO DE BANDA: DOWNSTREAM UP TO 2.488GBPS UPSTREAM UP TO 1.244GBPS MAX
-RECEPTOR: APD-TIA
-TRANSMISOR: DFB LASER

CARACTERÍSTICAS INALÁMBRICAS

-FRECUENCIA: 2.4GHZ
-TASA DE SEÑAL: 300MBPS AT 2.4GHZ
-FUNCIONES INALÁMBRICAS: ENABLE/DISABLE WIRELESS RADIO, WMM, WIRELESS STATISTICS
-SEGURIDAD INALÁMBRICA: 64/128-BIT WEP, WPA/WPA2, WPA-PSK/WPA2-PSK ENCRYPTIONS
-POTENCIA DE TRANSMISIÓN: 20DBM (2.4GHZ)
-CALENDARIZAR INALÁMBRICAMENTE: SUPPORT 2.4GHZ SCHEDULE

CARACTERÍSTICAS DE SOFTWARE

-CALIDAD DE SERVICIO: HARDWARE QOS
-CARACTERÍSTICAS AVANZADAS: SN, PASSWORD, SN + PASSWORD AUTHENTICATION MODE
UPSTREAM AND DOWNSTREAM FEC, AES ENCRYPTION
DYNAMIC BANDWIDTH ALLOCATION(DBA) SUPPORT NSR/SR
802.1Q VLAN, STATIC ROUTING;
IGMP V1/V2 /V3
16 T-CONTS, 256 GEM PORTS
-SEGURIDAD: NAT FIREWALL, SPI FIREWALL, ACCESS CONTROL, MAC/URL FILTERING, DENIAL OF SERVICE (DOS), SYN FLOODING, PING OF DEATH, IP AND MAC ADDRESS BINDING
-ADMINISTRACIÓN: OMCI, WEB BASED CONFIGURATION, COMMAND LINE INTERFACE, SSL FOR TR-069, OMCI BASED FIRMWARE UPGRADE
-TIPO DE CONEXIÓN WAN: PPPOE, DYNAMIC IP, STATIC IP, BRIDGE
-DHCP: SERVER, CLIENT, DHCP CLIENT LIST, ADDRESS RESERVATION, DHCP RELAY
-PORT FORWARDING: VIRTUAL SERVER, PORT TRIGGERING, DMZ, ALG, UPNP
-DYNAMIC DNS: DYNDNS, NO-IP
-PROTOCOLOS: SUPPORT IPV4 AND IPV6
-IGMP: IGMP V1/V2/V3
-IPSEC VPN: SUPPORT UP TO 10 IPSEC VPN TUNNELS

OTROS

-CONTENIDOS DEL PAQUETE: 300MBPS WIRELESS N GIGABIT VOIP GPON ROUTER XN020-G3V
RJ11 PHONE CABLE
RJ45 ETHERNET CABLE
QUICK INSTALLATION GUIDE
POWER ADAPTER
-REQUISITOS DEL SISTEMA: MICROSOFT WINDOWS 98SE, NT, 2000, XP, VISTA™ OR WINDOWS 7, 8, 8.1, 10, MAC OS, NETWARE, UNIX OR LINUX
INTERNET EXPLORER 11, FIREFOX 12.0, CHROME 20.0, SAFARI 4.0 , OR OTHER JAVA-ENABLED BROWSER
CABLE OR DSL MODEM
-CERTIFICACIONES: CE, ANATEL
-AMBIENTE: OPERATING TEMPERATURE: 0 AND #8451;~40 AND #8451;(32 AND #8457;~104 AND #8457;)
STORAGE TEMPERATURE: -40 AND #8451;~70 AND #8451;(-40 AND #8457;~158 AND #8457;)
OPERATING HUMIDITY: 10%~90% NON-CONDENSING
STORAGE HUMIDITY: 5%~90% NON-CONDENSING
