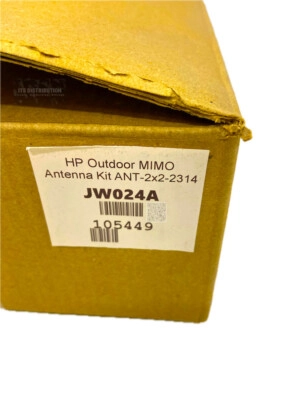

Antena hpe jw024a hpe aruba networking outdoor mimo antenna kit ant-2x2-2314

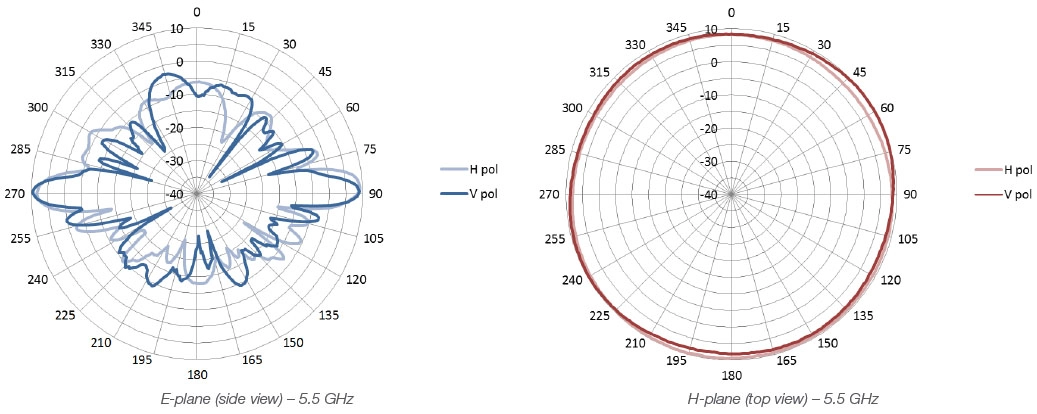

ANT-2X2-2314 IS A DUAL-POLARIZED ANTENNA WITH 30° H X 30° V BEAMWIDTHS. THIS ANTENNA IS WELL SUITED FOR COVERAGE ALONG A STREET, SPOT COVERAGE, OR FOR COVERING A SEATING SECTION IN STADIUMS AND OTHER LARGE PUBLIC VENUES. FREQUENCY / MAX GAIN • 2.4 GHZ–2.5 GHZ/14 DBI MIN POLARIZATION • H AND V BEAMWIDTH • E PLANE: 30° • H PLANE: 30° IMPEDANCE • 50 OHMS MAXIMUM INPUT POWER • 6 WATTS VSWR • 1.5:1 TYP CONNECTORS • N-TYPE FEMALE X2 RF CABLES NOT INCLUDED DIMENSIONS • 260 MM X 261 MM X 30 MM WEIGHT • 1000G HOUSING • ALUMINUM RADOME MATERIAL • PLASTIC OPERATING TEMPERATURE • -45°C TO 65°C INSTALLATION HARDWARE • MOUNT KIT FOR WALL AND POLE INCLUDED
