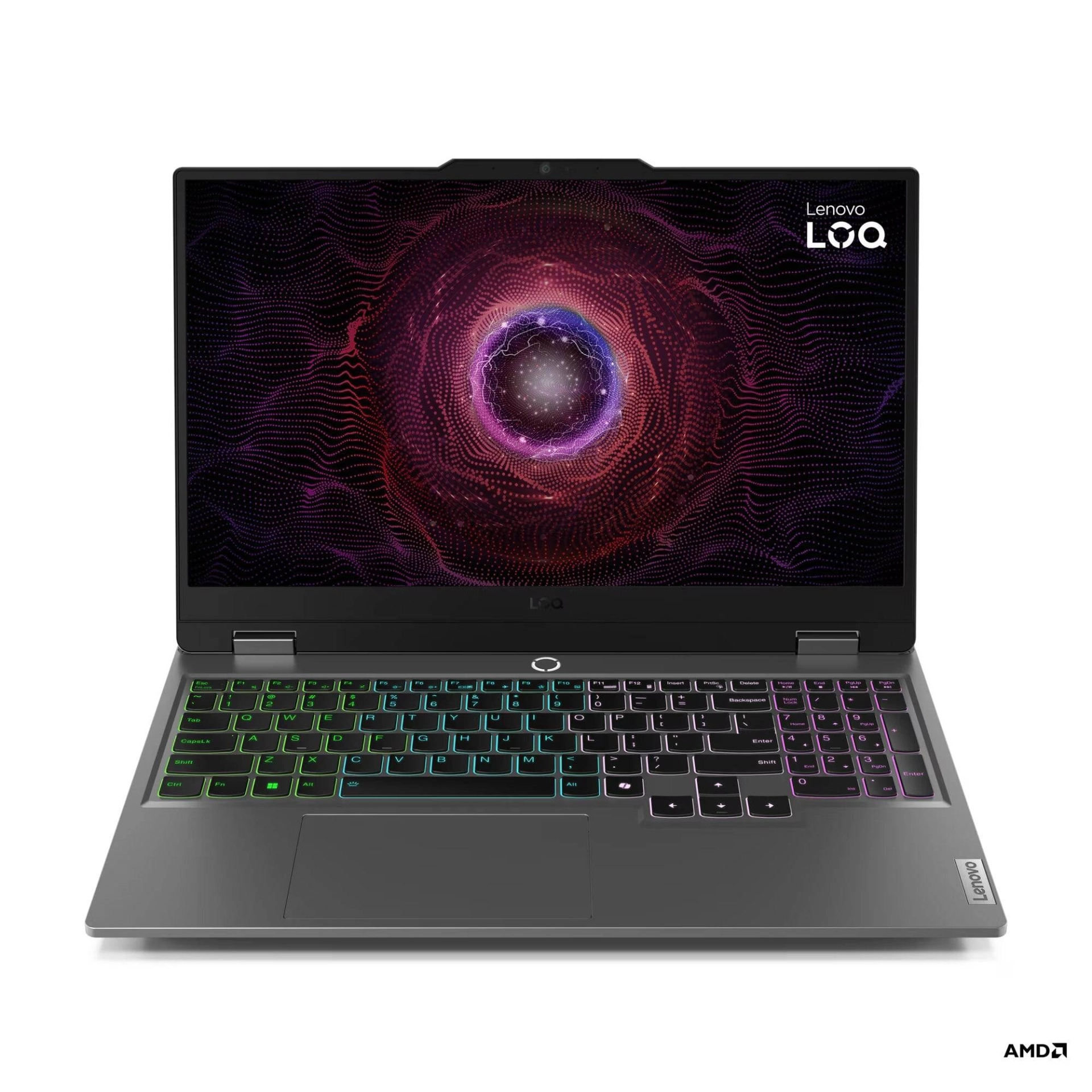

LOQ 15ARP9
PART NUMBER : 83JC007CLM
PERFORMANCE
PROCESSOR
AMD RYZEN 5 7235HS (4C / 8T, 3.2 / 4.2GHZ, 2MB L2 / 8MB L3)
AI PC CATEGORY
AI-POWERED GAMING PC
GRAPHICS
NVIDIA® GEFORCE RTX 3050 6GB GDDR6, BOOST CLOCK 1732MHZ, TGP 95W
CHIPSET
AMD SOC PLATFORM
MEMORY
1X 8GB SO-DIMM DDR5-4800
MEMORY SLOTS
TWO DDR5 SO-DIMM SLOTS, DUAL-CHANNEL CAPABLE
MAX MEMORY
UP TO 32GB DDR5-4800
STORAGE
512GB SSD M.2 2242 PCIE® 4.0X4 NVME®
STORAGE SUPPORT
UP TO TWO DRIVES, 2X M.2 SSD
M.2 2242 SSD UP TO 1TB
STORAGE SLOT
TWO M.2 2280 PCIE® 4.0 X4 SLOTS
CARD READER
NONE
OPTICAL
NONE
AUDIO CHIP
HIGH DEFINITION (HD) AUDIO, REALTEK® ALC3287 CODEC
SPEAKERS
STEREO SPEAKERS, 2W X2, OPTIMIZED WITH NAHIMIC AUDIO
CAMERA
HD 720P WITH E-SHUTTER
MICROPHONE
2X, ARRAY
BATTERY
INTEGRATED 60WH
POWER ADAPTER
170W SLIM TIP (3-PIN)
SPECIAL FEATURES
AI CHIP: LA1
DESIGN
DISPLAY
15.6 FHD (1920X1080) IPS 300NITS ANTI-GLARE, 100% SRGB, 144HZ, G-SYNC®
TOUCHSCREEN
NONE
COLOR CALIBRATION
NONE
KEYBOARD
WHITE BACKLIT, SPANISH (LA)
TOUCHPAD
BUTTONLESS MYLAR® SURFACE MULTI-TOUCH TOUCHPAD, SUPPORTS PRECISION TOUCHPAD (PTP), 75 X 120 MM (2.95 X 4.72 INCHES)
CASE COLOR
LUNA GREY
SURFACE TREATMENT
PAINTING
CASE MATERIAL
PC-ABS (TOP), PC-ABS (BOTTOM)
DIMENSIONS (WXDXH)
359.86 X 258.7 X 21.9-23.9 MM (14.17 X 10.19 X 0.86-0.94 INCHES)
WEIGHT
STARTING AT 2.38 KG (5.25 LBS)
SOFTWARE
OPERATING SYSTEM
WINDOWS® 11 HOME SINGLE LANGUAGE, SPANISH
BUNDLED SOFTWARE
OFFICE TRIAL
CONNECTIVITY
ETHERNET
100/1000M (RJ-45)
WLAN + BLUETOOTH
WI-FI® 6, 802.11AX 2X2 + BT5.2
STANDARD PORTS
3X USB-A (USB 5GBPS / USB 3.2 GEN 1)
1X USB-C® (USB 10GBPS / USB 3.2 GEN 2), WITH LENOVO® PD 140W AND DISPLAYPORT 1.4
1X HDMI® 2.1, UP TO 8K/60HZ
1X HEADPHONE / MICROPHONE COMBO JACK (3.5MM)
1X ETHERNET (RJ-45)
1X POWER CONNECTOR
DOCKING
VARIOUS DOCKING SOLUTIONS SUPPORTED VIA USB-C®.
FOR MORE COMPATIBLE DOCKING SOLUTIONS, PLEASE VISIT DOCKING FOR LOQ 15ARP9
SECURITY AND PRIVACY
SECURITY CHIP
FIRMWARE TPM 2.0 ENABLED
FINGERPRINT READER
NONE
OTHER SECURITY
E-SHUTTER
SERVICE
BASE WARRANTY
1-YEAR, COURIER OR CARRY-IN
INCLUDED UPGRADE
NONE
ACCESSORIES
BUNDLED ACCESSORIES
NONE
CERTIFICATIONS
GREEN CERTIFICATIONS
ERP LOT 3
ROHS COMPLIANT
OTHER CERTIFICATIONS
TÜV RHEINLAND® LOW BLUE LIGHT (SOFTWARE SOLUTION)
