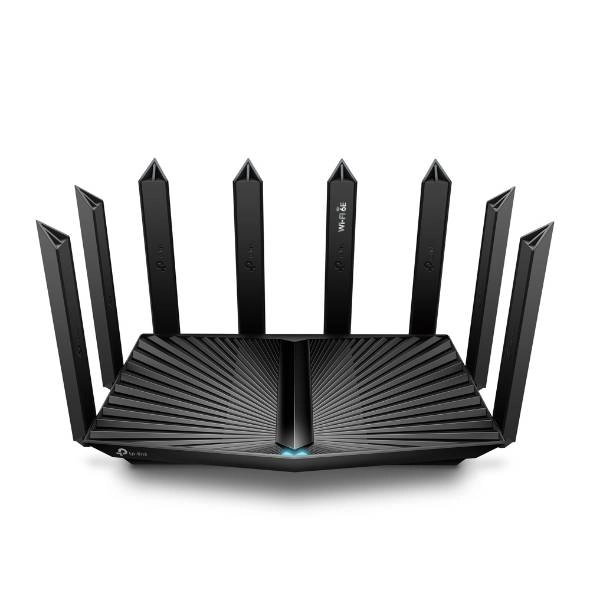

Router | tp-link | archer axe95 | tribanda axe7800 | wifi 6e | one mesh | 1 puerto wan /lan de 2.5 gbps + 1 pto wan/lan de 1 gbps + 3 ptos lan gigabit

WIRELESS
STANDARDS
IEEE 802.11AX 6 GHZ,
IEEE 802.11AX/AC/N/A 5 GHZ,
IEEE 802.11AX/N/B/G 2.4 GHZ
WIFI SPEEDS
AXE7800
6 GHZ: 2402 MBPS (802.11AX)
5 GHZ: 4802 MBPS (802.11AX)
2.4 GHZ: 574 MBPS (802.11AX)
WIFI RANGE
4 BEDROOM HOUSES8× FIXED HIGH-PERFORMANCE ANTENNAS
MULTIPLE ANTENNAS FORM A SIGNAL-BOOSTING ARRAY TO COVER MORE DIRECTIONS AND LARGE AREAS


BEAMFORMING
CONCENTRATES WIRELESS SIGNAL STRENGTH TOWARDS CLIENTS TO EXPAND WIFI RANGE


HIGH-POWER FEM
IMPROVES TRANSMISSION POWER TO STRENGTHEN SIGNAL COVERAGE


4T4R
MULTIPLE STREAMS IN THE SAME BAND STRENGTHEN THE FAULT TOLERANCE IN TRANSMISSION
WIFI CAPACITY
VERY HIGHTRI-BAND
ALLOCATE DEVICES TO DIFFERENT BANDS FOR OPTIMAL PERFORMANCE


4×4 MU-MIMO
SIMULTANEOUSLY COMMUNICATES WITH MULTIPLE MU-MIMO CLIENTS


OFDMA
SIMULTANEOUSLY COMMUNICATES WITH MULTIPLE CLIENTS


AIRTIME FAIRNESS
IMPROVES NETWORK EFFICIENCY BY LIMITING EXCESSIVE OCCUPATION


DFS
ACCESS AN EXTRA BAND TO REDUCE CONGESTION


8 STREAMS
CONNECT YOUR DEVICES TO MORE BANDWIDTH
WORKING MODES
ROUTER MODE
ACCESS POINT MODE



SECURITY
NETWORK SECURITY
SPI FIREWALL
ACCESS CONTROL
IP AND MAC BINDING
APPLICATION LAYER GATEWAY


HOMESHIELD SECURITYREAL-TIME IOT PROTECTION
MALICIOUS SITE BLOCKER
INTRUSION PREVENTION SYSTEM
DDOS ATTACK PREVENTION
HOME NETWORK SCANNER
GUEST NETWORK
1× 6 GHZ GUEST NETWORK,
1× 5 GHZ GUEST NETWORK,
1× 2.4 GHZ GUEST NETWORK
VPN SERVER
OPENVPN SERVER
PPTP VPN SERVER
L2TP VPN SERVER
VPN CLIENT
OPEN VPN CLIENT
PPTP VPN CLIENT
L2TP VPN CLIENT
WIFI ENCRYPTION
WPA,
WPA2,
WPA3,
WPA/WPA2-ENTERPRISE (802.1X)



HARDWARE
PROCESSOR
1.7 GHZ QUAD-CORE CPU
ETHERNET PORTS
1× 2.5 GBPS WAN/LAN PORT
1× 1 GBPS WAN/LAN PORT
3× 1 GBPS LAN PORTS
USB SUPPORT
1× USB 3.0 PORT
1× USB 2.0 PORT


SUPPORTED PARTITION FORMATS:
NTFS, EXFAT, HFS+, FAT32


SUPPORTED FUNCTIONS:
APPLE TIME MACHINE
FTP SERVER
MEDIA SERVER
SAMBA SERVER
BUTTONS
POWER ON/OFF BUTTON
RESET BUTTON
POWER
12 V AND #9107; 3.3 A



SOFTWARE
PROTOCOLS
IPV4
IPV6
SERVICE KITS
HOMESHIELD
LEARN MORE
ONEMESH™
ONEMESH™ SUPPORTED
WITHOUT REPLACING YOUR EXISTING DEVICES OR BUYING A WHOLE NEW WIFI ECOSYSTEM, ONEMESH™ HELPS YOU CREATE A MORE FLEXIBLE NETWORK THAT COVERS YOUR ENTIRE HOME WITH TP-LINK ONEMESH™ PRODUCTS.
LEARN MORE
ALL ONEMESH PRODUCTS
PARENTAL CONTROLS
HOMESHIELD PARENTAL CONTROLSCUSTOM PROFILES
PROFESSIONAL CONTENT FILTER LIBRARY
FAMILY TIME
BEDTIME
OFF TIME
TIME REWARDS
FAMILY ONLINE TIME RANKING
PAUSE THE INTERNET
WEEKLY AND MONTHLY REPORTS
WAN TYPES
DYNAMIC IP
STATIC IP
PPPOE
PPTP
L2TP
QUALITY OF SERVICE
QOS BY DEVICE
CLOUD SERVICE
AUTO FIRMWARE UPGRADE
TP-LINK ID
DDNS
NAT FORWARDING
PORT FORWARDING
PORT TRIGGERING
DMZ
UPNP
VIRTUAL SERVER
IPTV
IGMP PROXY
IGMP SNOOPING
BRIDGE
TAG VLAN
DHCP
ADDRESS RESERVATION
DHCP CLIENT LIST
SERVER
DDNS
TP-LINK
NO-IP
DYNDNS
MANAGEMENT
TETHER APP
WEBPAGE



OTHER
SYSTEM REQUIREMENTS
INTERNET EXPLORER 11+, FIREFOX 12.0+, CHROME 20.0+, SAFARI 4.0+, OR OTHER JAVASCRIPT-ENABLED
BROWSER
CABLE OR DSL MODEM (IF NEEDED)
SUBSCRIPTION WITH AN INTERNET SERVICE PROVIDER (FOR INTERNET ACCESS)
CERTIFICATIONS
FCC, ROHS
ENVIRONMENT
OPERATING TEMPERATURE: 0 AND #8451;~40 AND #8451; (32 AND #8457; ~104 AND #8457;)
OPERATING HUMIDITY: 10%~90% NON-CONDENSING



TEST DATA
WIFI TRANSMISSION POWER
FCC: AND #8804;29DBM (2.4 GHZ), AND #8804;28DBM (5 GHZ), AND #8804;22DBM (6 GHZ)
CE: AND #8804;17DBM (2.4 GHZ), AND #8804;27DBM (5 GHZ), AND #8804;20DBM (6 GHZ)
WIFI RECEPTION SENSITIVITY
2.4 GHZ:
11AX HE20 MCS0:-95DBM, 11AX HE20 MCS11:-64DBM
11AX HE40 MCS0:-92DBM, 11AX HE40 MCS11:-62DBM
5 GHZ:
11AX HE20 MCS0:-94DBM, 11AX HE20 MCS11:-63DBM
11AX HE40 MCS0:-91DBM, 11AX HE40 MCS11:-60DBM
11AX HE80 MCS0:-88DBM, 11AX HE80 MCS11:-57DBM
11AX HE160 MCS0:-85DBM, 11AX HE160 MCS11:-54DBM
6 GHZ:
11AX HE20 MCS0:-93DBM, 11AX HE20 MCS11:-62DBM
11AX HE40 MCS0:-90DBM, 11AX HE40 MCS11:-59DBM
11AX HE80 MCS0:-87DBM, 11AX HE80 MCS11:-56DBM
11AX HE160 MCS0:-84DBM, 11AX HE160 MCS11:-53DBM



PHYSICAL
DIMENSIONS (W×D×H)
12.2 × 8.1 × 6.8 IN
(311 × 207 × 174 MM)
PACKAGE CONTENTS
WI-FI ROUTER ARCHER AXE95
POWER ADAPTER
RJ45 ETHERNET CABLE
QUICK INSTALLATION GUIDE
